How to License Matrikon OPC Software: A Step-by-Step Guide

Created by Jose Fabian Solano, Modified on Tue, 19 Nov at 9:12 PM by Jose Fabian Solano

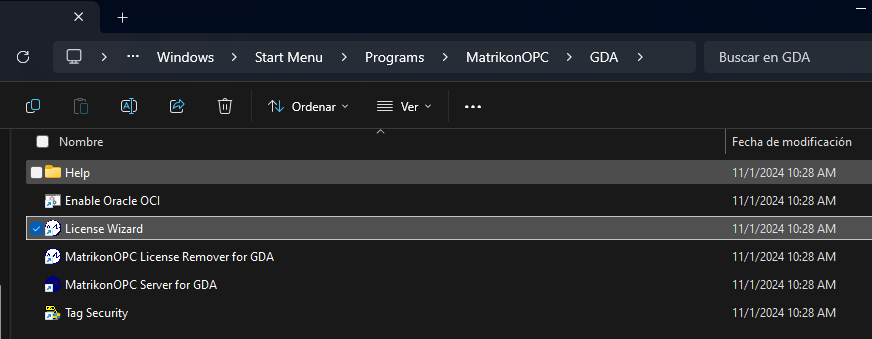

The first step is to locate the Matrikon OPC folder in the Windows Start menu. Once found, identify the specific software you want to unlicense; for this example, we’ll use Matrikon OPC for GDA. Right-click on the software and select the "Open file location" option. This will take you directly to the folder containing the software files and related options.

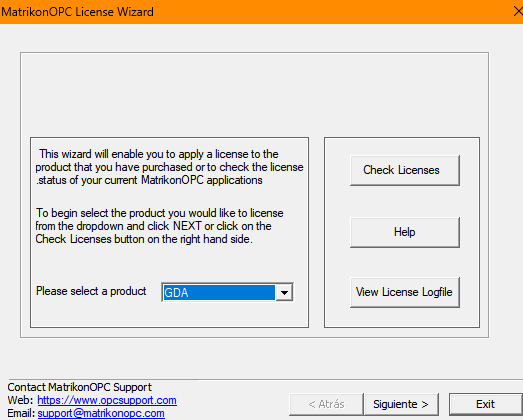

Secondly, run the License Wizard as an administrator. This will open a configuration panel where you can select the product you wish to license. In this example, we’ll choose Matrikon OPC for GDA.

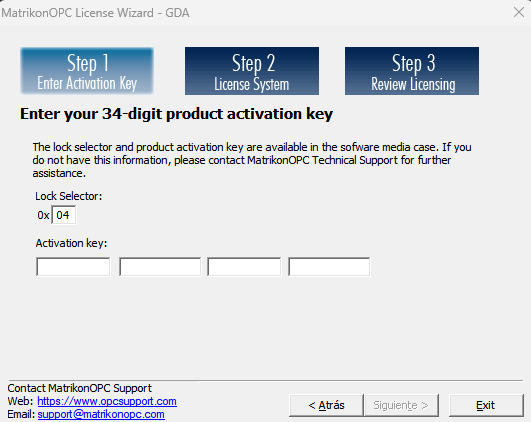

Third, click the **Next** button to proceed. This will bring up a panel where you’ll be prompted to enter the **Lock Selector** and **Activation Key**.



Fourth, after entering the license details, click **Next**. The wizard will authenticate with the license server and confirm that the license has been successfully applied to the software.

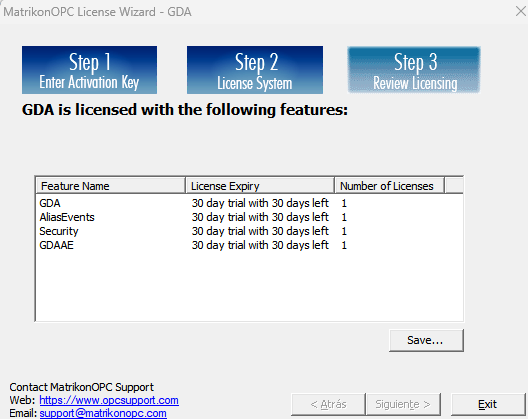

The following image illustrates the licensing process for a trial license.



Created By JF
