6. OPC UA Server - Protocol not supported Error in atvise Connect

❗Problem

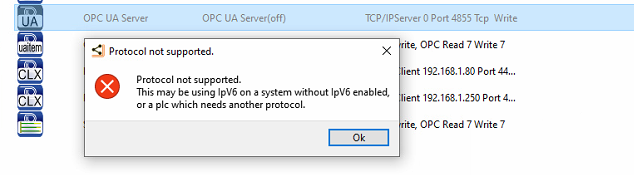

When attempting to activate or configure the OPC UA Server in atvise Connect, an error message appears:

Protocol not supported.

This may be using IPv6 on a system without IPv6 enabled, or a PLC which needs another protocol.

This issue typically occurs when the atvise Connect security certificates are corrupted.

✅Solution

1. Close atvise Connect.
2. Navigate to the following folder: C:\Users\Public\Documents\atvise
3. Delete the following files (if present):
   • clientCert.pem
   • clientKey.pem
   • serverCert.pem
   • serverKey.pem
4. Restart atvise Connect.
5. Re-enable the OPC UA Server.

New certificates will be automatically generated upon restart.
