How to internally license atvise Connect

The atvise Connect application comes with a 72 hours trial for testing, sometimes for our testing we need more time than that.

**Is important to note that this will only work with DEVELOPER and TRIAL Licenses, for all other types of licenses please get in contact with your sales contact or send an email at soporte@vestersl.com**

You can download atvise Connect at: https://atvise.vesterbusiness.com/descarga-sistema-scada/

1. You will need to have atvise SCADA already installed as well atvise connect, also you will need to have a Developer or Trial License.

2. Open atvise Connect, you will see something like this:

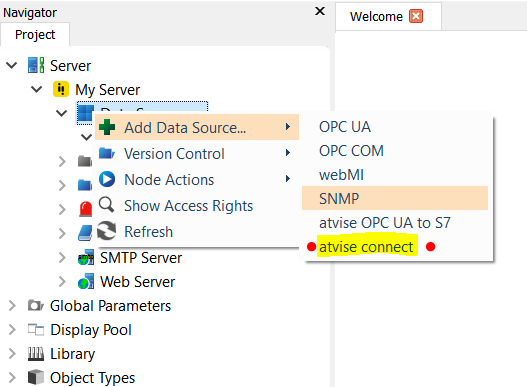

2. atvise Connect has an OPC UA Server that goes out through port 4855, in order to internally license it, you will need to open atvise Builder, add a new "Data Source" and click on "atvise connect" as shown in the image below:

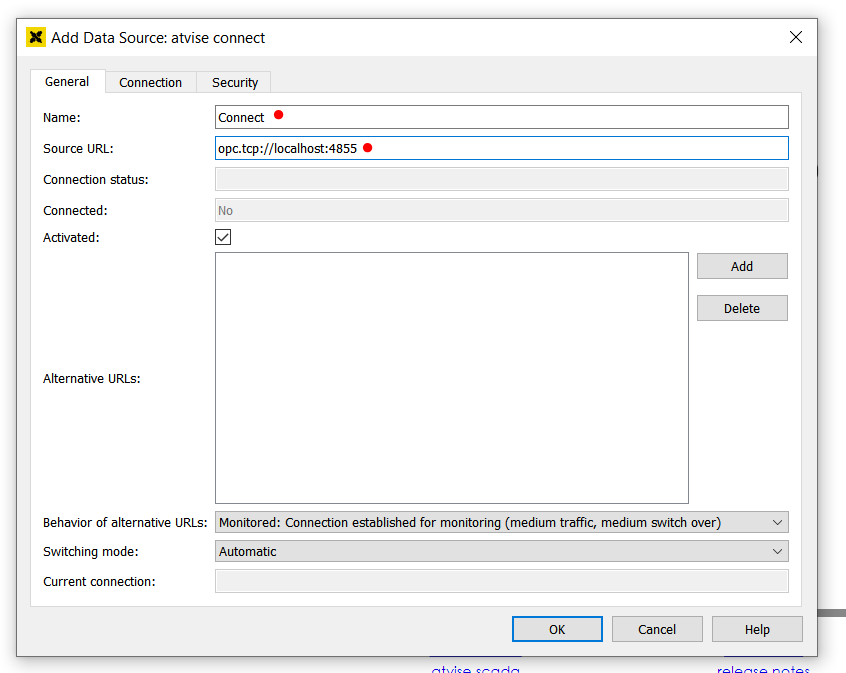

3. After the click we will see the below screen, here we have to fill the "Name" and "Source Information" as shown in the image below:

4. Finally we click OK, once the Data Source is added we can check the "Device Licenses" of our atvise Connect as below:

5. If the process was done correctly we have to see on the following screen where it says "Internally licensed" in this way:
