atvise® Connect Licensing Procedure

Created by Agent Aaron Camacho, Modified on Tue, 29 Nov, 2022 at 4:42 PM by Agent Aaron Camacho

atvise® Connect Licensing Procedure


1. Download atvise® Connect to connect devices that communicates through industrial protocols with atvise® SCADA. Download SCADA software for Industry (Free Trial) | atvise® (vesterbusiness.com).


2. Open atvise® Connect Device Configuration and click “Configure product on this PC”.

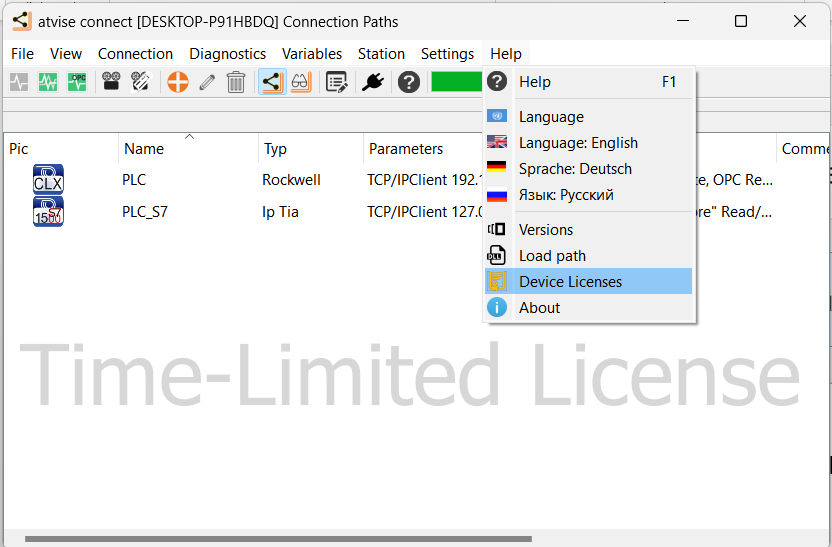

3. In the top menu click on Help and select Device Licenses.


Graphical user interface, text, application

Description automatically generated

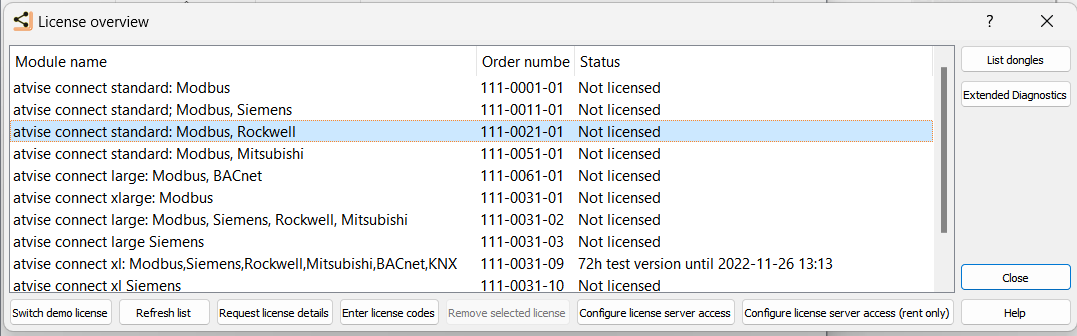

4. In the window License overview and select the desired Module name and click on Request license details.

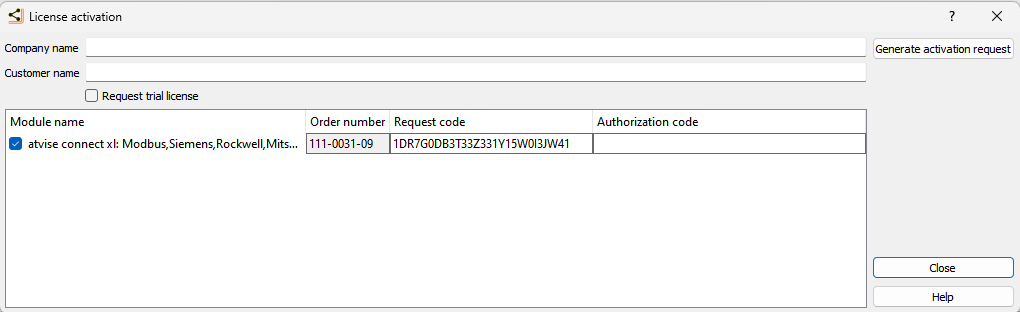

5. Copy the Request code and generate the license in customer.atvise.com.

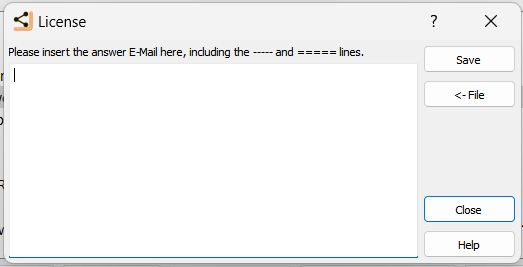

6. Click on Enter license codes and paste the code license generated and save the configuration.


Graphical user interface, text, application, email

Description automatically generated





















7. Then click close the window and restart the atvise® Connect Services.
