Running Multiple Versions of atvise® SCADA

Running Multiple Versions of atvise® SCADA on the Same Server:

1. Download the desired installer from the customer.atvise.com website.

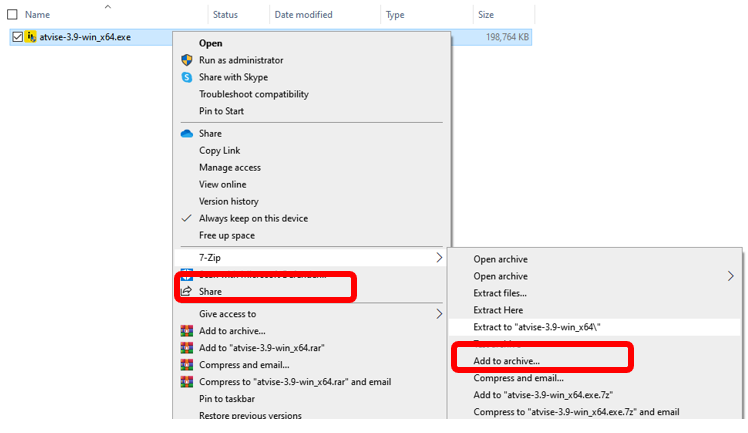

2. Use 7-Zip (make sure to use the latest version) to extract the contents of the installer file. You should see a file named:

   • atvise-3.x.x-win_x64.exe

   •

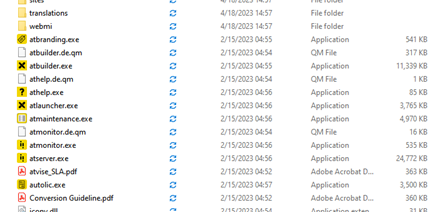

3. The contents should look as follows:
   •
4. Copy the "atserver.lic" license file from the current installation directory to the directory of the version you want to use, usually located in:

   • C:\Program Files\atvise






5. Create a text file named "atserver.ini" within the project directory and specify the desired port configurations. For example:

   • OPC UA = 4841, HTTP = 81 y HTTPS = 444

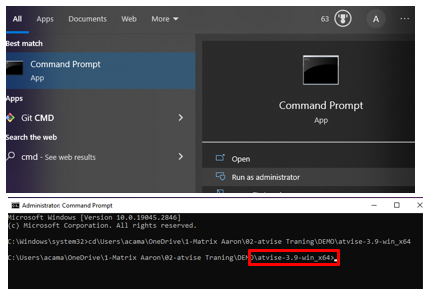

6. Launch the command prompt as an administrator and navigate to the directory of the new version.

   • cd\....\atvise-3.9-win_x64

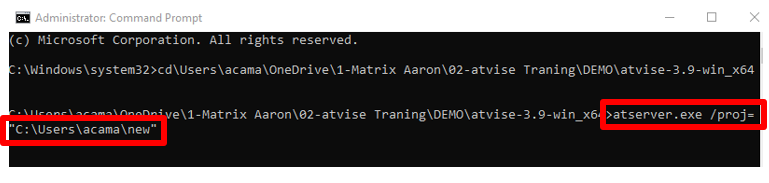

7. Define the project folder path where the new project will be created and a "nodes.db" file will be generated. Use the following command:

   • atserver.exe /proj="C:\Users\acama\new"




8. Press enter and start the new project as described in step 5.

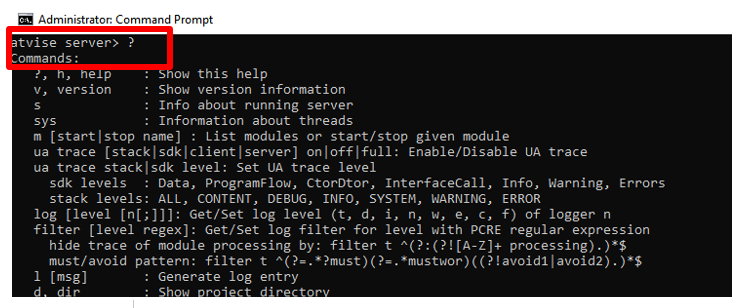

9. By using the “?” character, you can access the project details.

   •

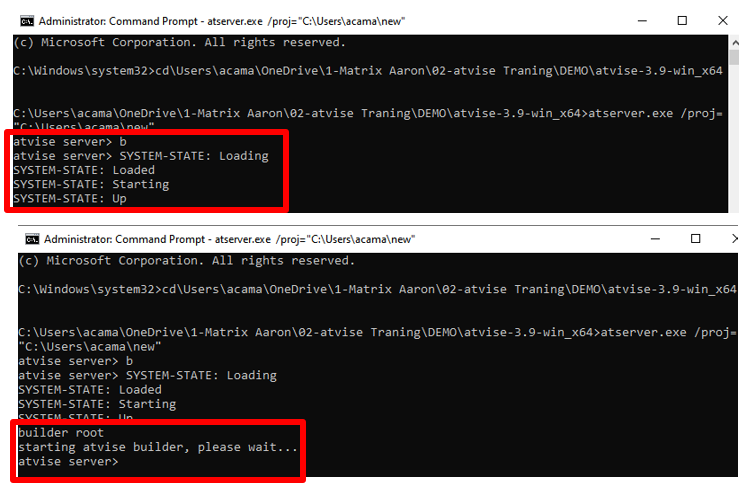

10. By using the "b" character, you can initialize the server. To launch the developer, use the command "builder root".

    •
