This quick guide provides a simple example of how to integrate the Google Maps API into an atvise display.
Please note that this feature requires an active internet connection to work properly.
Google Maps is a powerful tool to visualize locations, assets, or sensor data directly within your SCADA displays.
By embedding a Google Map inside atvise, you can enrich dashboards with real-world geographic context, making it easier for operators to monitor distributed infrastructure like substations, solar fields, or remote water plants.
✅Steps
- Get an API Key
- Follow the official documentation to create and configure your Google Maps API key: Set up the Maps Embed API | Google for Developers
- Insert a Foreign Object

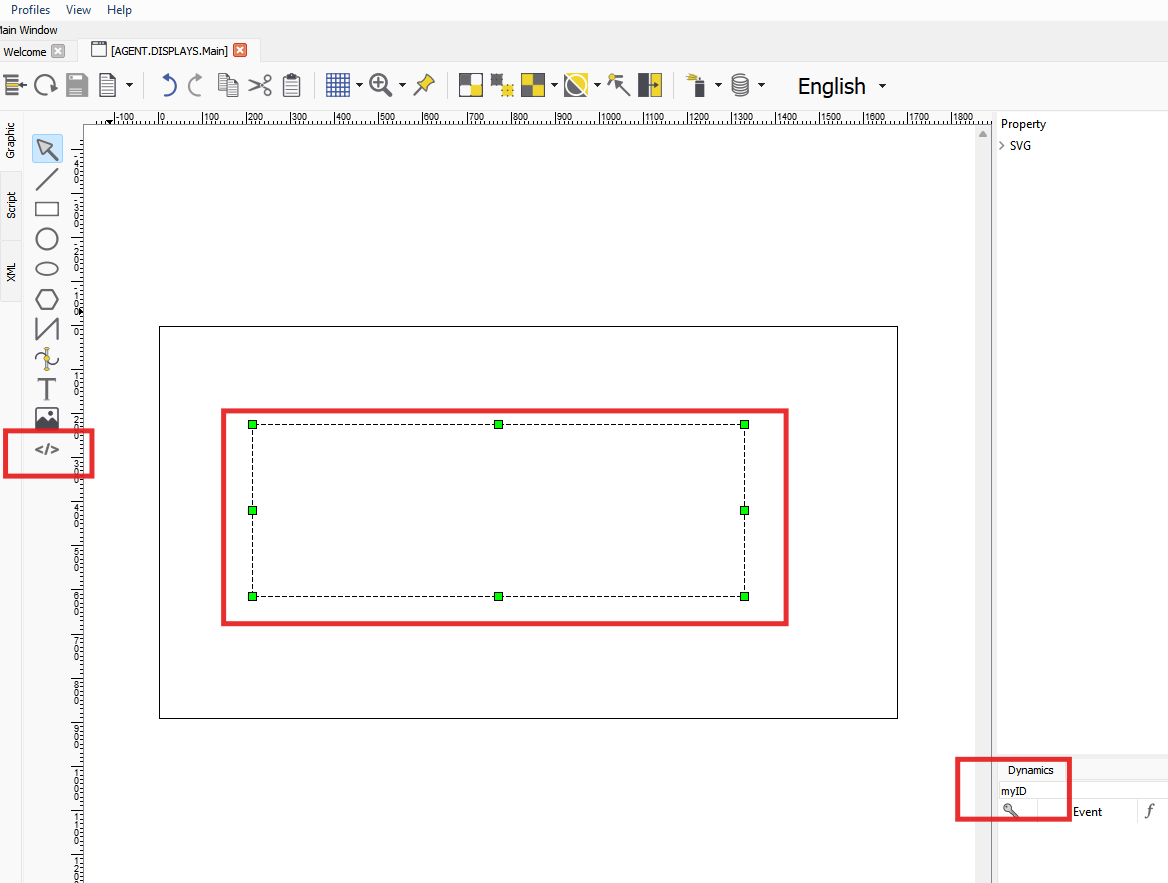

- In your atvise display, insert a Foreign Object element and assign it a unique ID (for example: "myID"). This will be the container where the map is rendered.
- In your atvise display, insert a Foreign Object element and assign it a unique ID (for example: "myID"). This will be the container where the map is rendered.
- Reference the Google Maps API

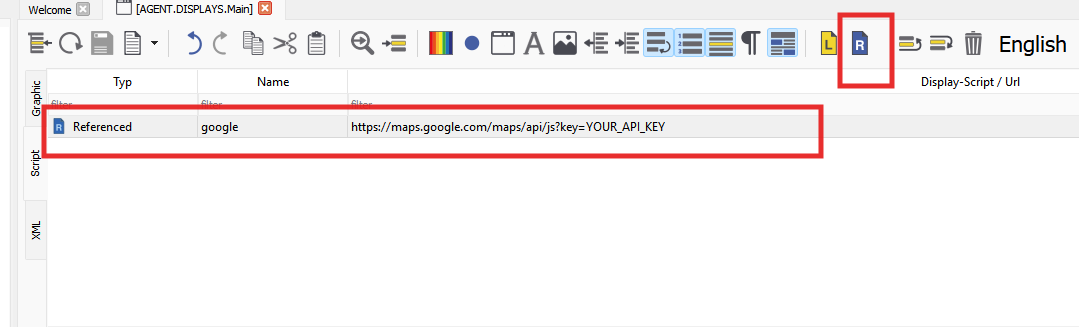

- In the script section, add a reference to the Google Maps JavaScript API using your API Key.
- In the script section, add a reference to the Google Maps JavaScript API using your API Key.
- Add a Map Configuration
- Follow the official developer guide to configure your first map: Simple Map | Maps JavaScript API | Google for Developers
- Insert the Code Example with a Marker

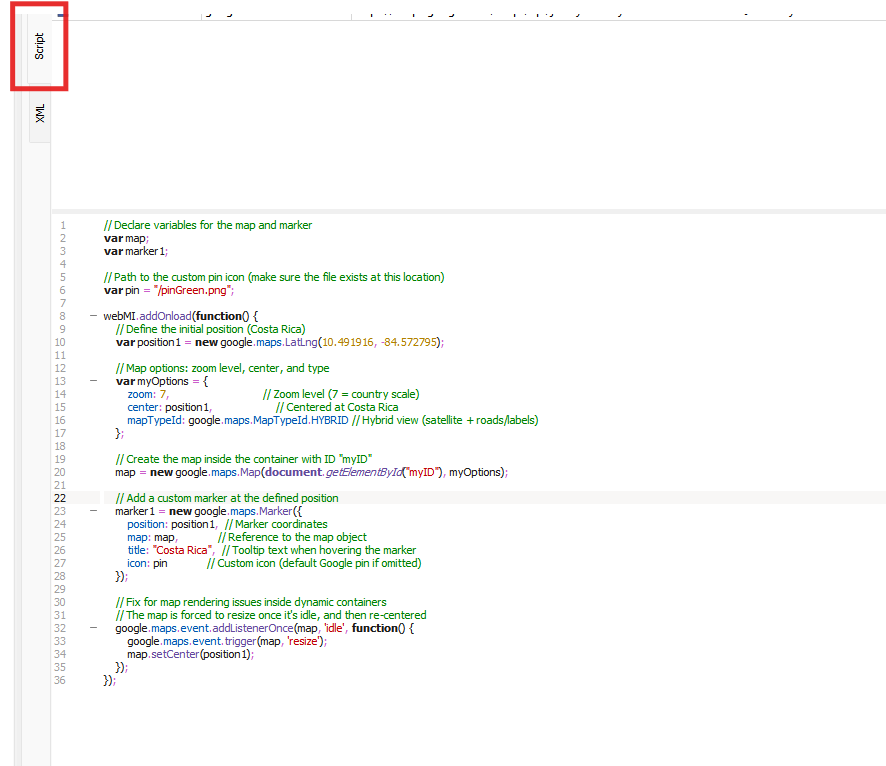

- Use the provided sample code to display a basic map with a marker in the step 6.
- Use the provided sample code to display a basic map with a marker in the step 6.
// Declare variables for the map and marker var map; var marker1; // Path to the custom pin icon (make sure the file exists at this location) var pin = "/pinGreen.png"; webMI.addOnload(function() { // Define the initial position (Costa Rica) var position1 = new google.maps.LatLng(10.491916, -84.572795); // Map options: zoom level, center, and type var myOptions = { zoom: 7, // Zoom level (7 = country scale) center: position1, // Centered at Costa Rica mapTypeId: google.maps.MapTypeId.HYBRID // Hybrid view (satellite + roads/labels) }; // Create the map inside the container with ID "myID" map = new google.maps.Map(document.getElementById("myID"), myOptions); // Add a custom marker at the defined position marker1 = new google.maps.Marker({ position: position1, // Marker coordinates map: map, // Reference to the map object title: "Costa Rica", // Tooltip text when hovering the marker icon: pin // Custom icon (default Google pin if omitted) }); // Fix for map rendering issues inside dynamic containers // The map is forced to resize once it's idle, and then re-centered google.maps.event.addListenerOnce(map, 'idle', function() { google.maps.event.trigger(map, 'resize'); map.setCenter(position1); }); });
- Check the atvise Live Example

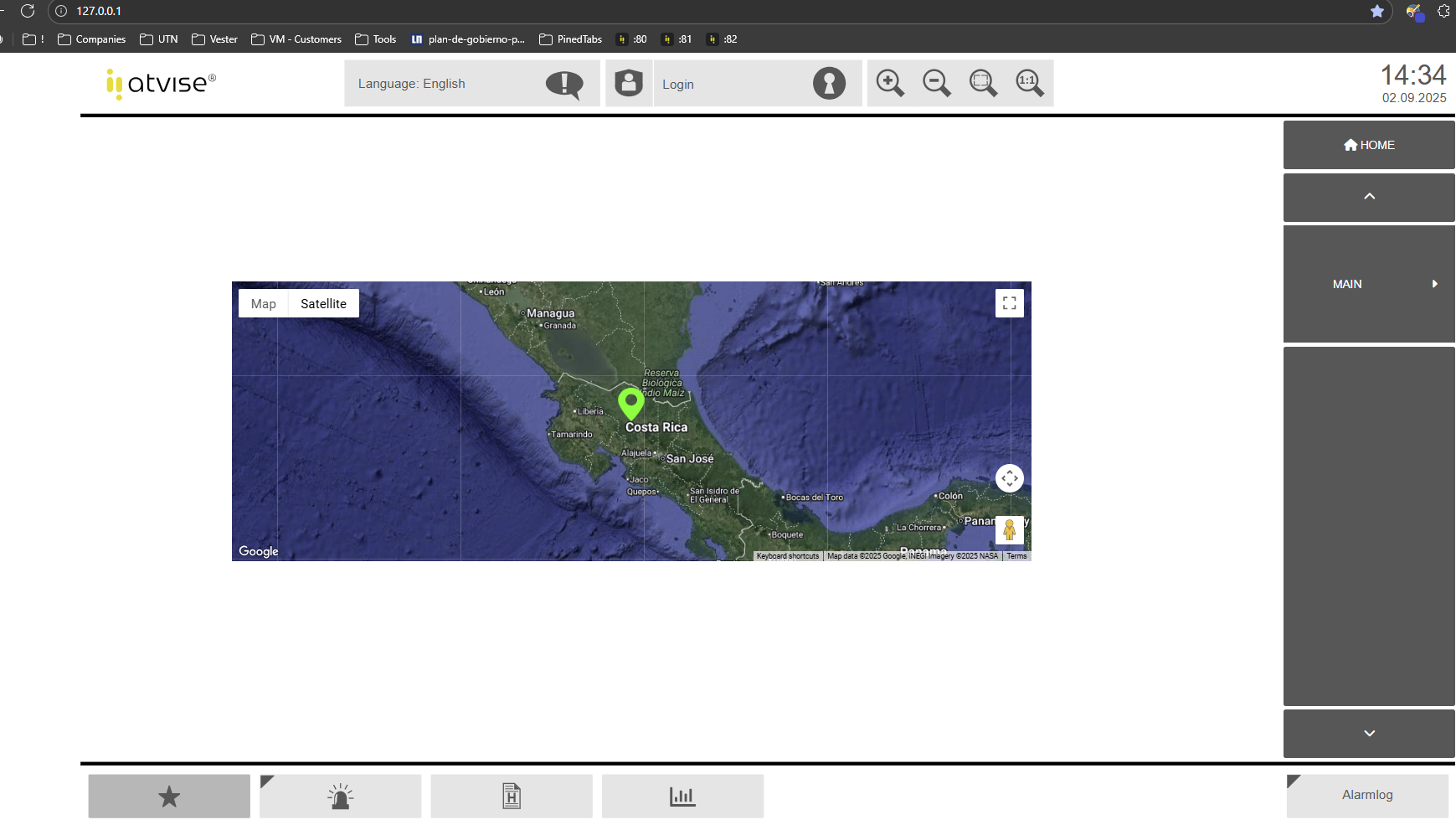

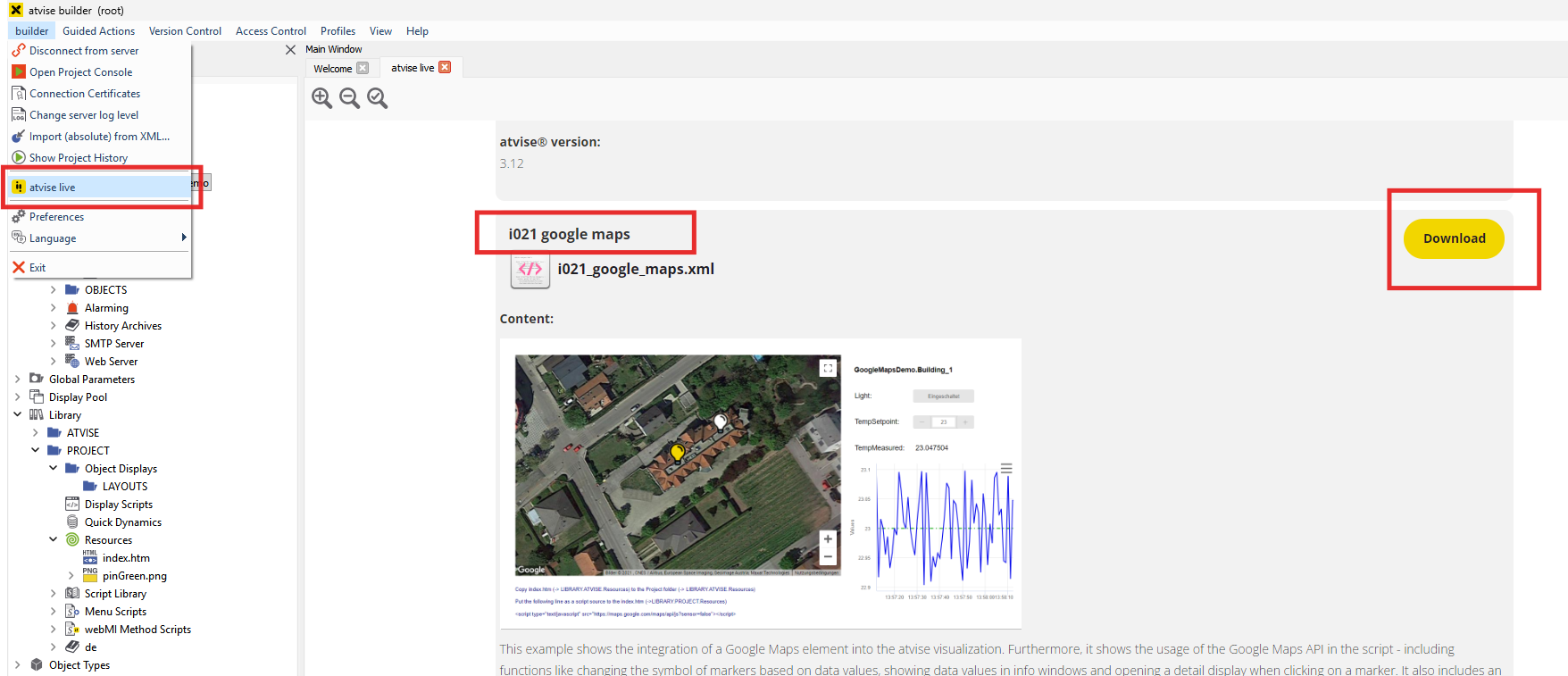

- Open the example project i021 google maps inside atvise to see how the integration works with the atvise library.
- Open the example project i021 google maps inside atvise to see how the integration works with the atvise library.
