12. Running Multiple Projects in atvise SCADA

Sometimes you may need to run two or more different projects on the same atvise® server simultaneously. By default, atvise allows only one project, but if you have developed multiple projects and stored them in the installation directory, you can run them together.

Note: This option is available only with TRIAL and Developer licenses. For a single-server license, please contact your atvise® commercial provider.

Remember: the project file is the nodes.db file, so each one of these folders contains their specific nodes.db file.

In order to run two or more projects at the same time, just follow these simple steps:

✅Steps

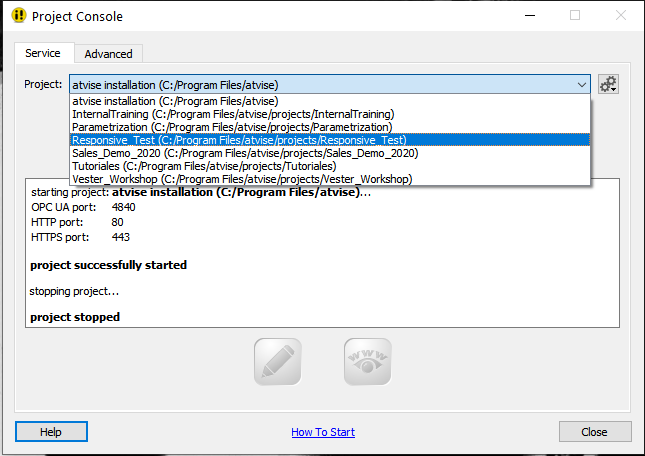

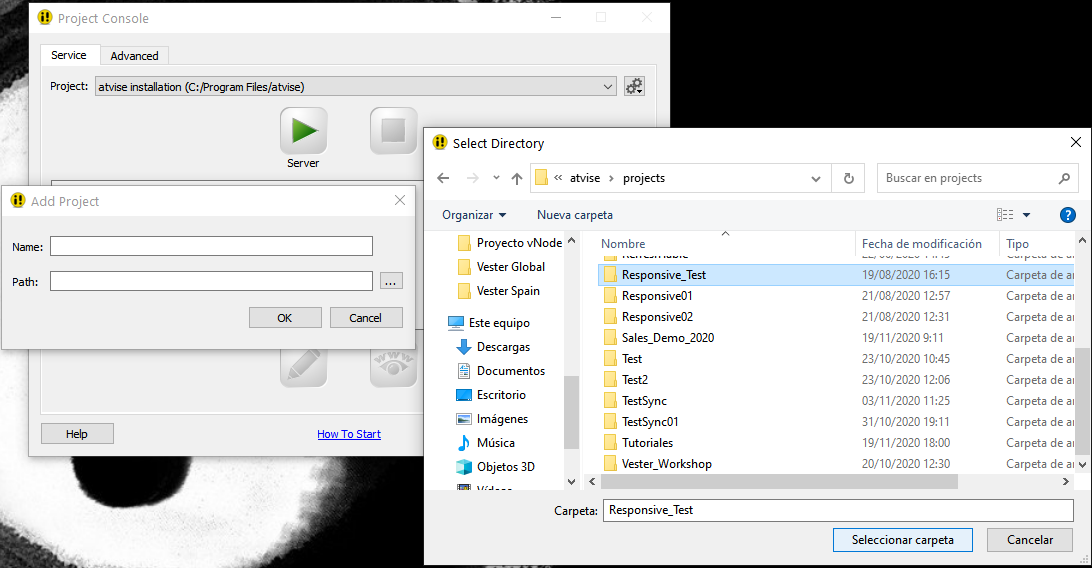

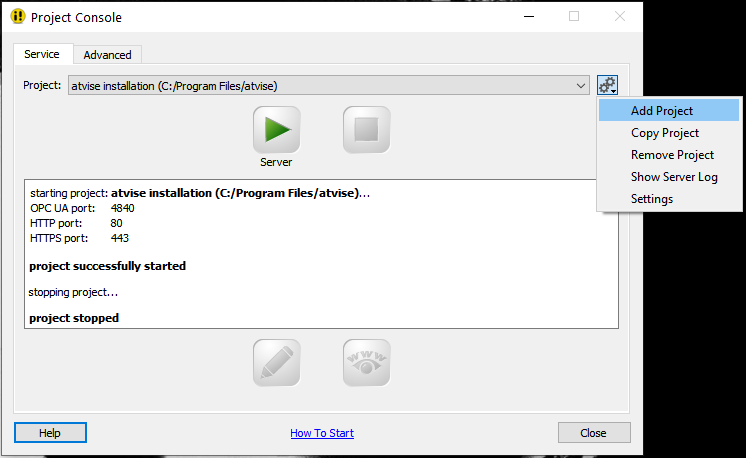

1. In the project console, load the projects you would like to run (server must be stopped in this step):

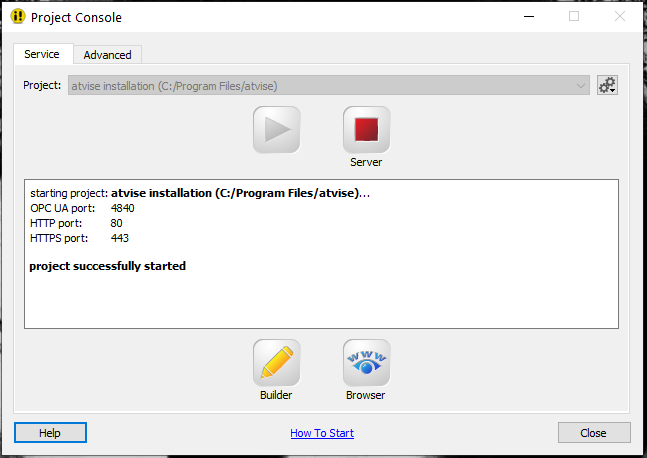

2. Run your default project







   Default ports for the default project are:
   OPC UA: 4840
   HTTP Port: 80
   HTTPs Port: 443

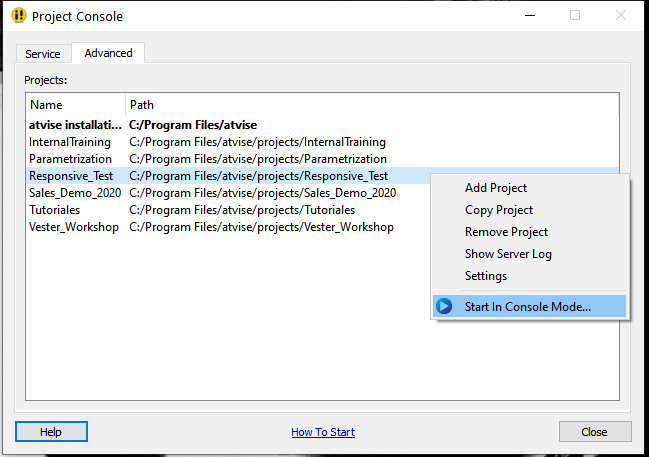

3. Run other projects: Click on the Advanced tab --> select one of your projects --> right click --> Start in Console Mode:

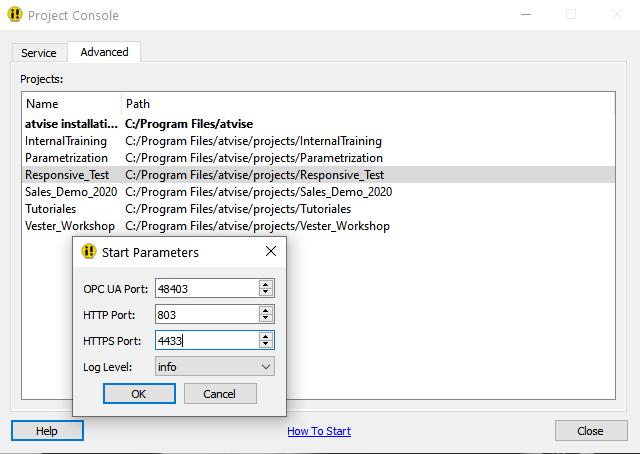

4. Change the ports for this project to avoid conflicts with the default one (and others):

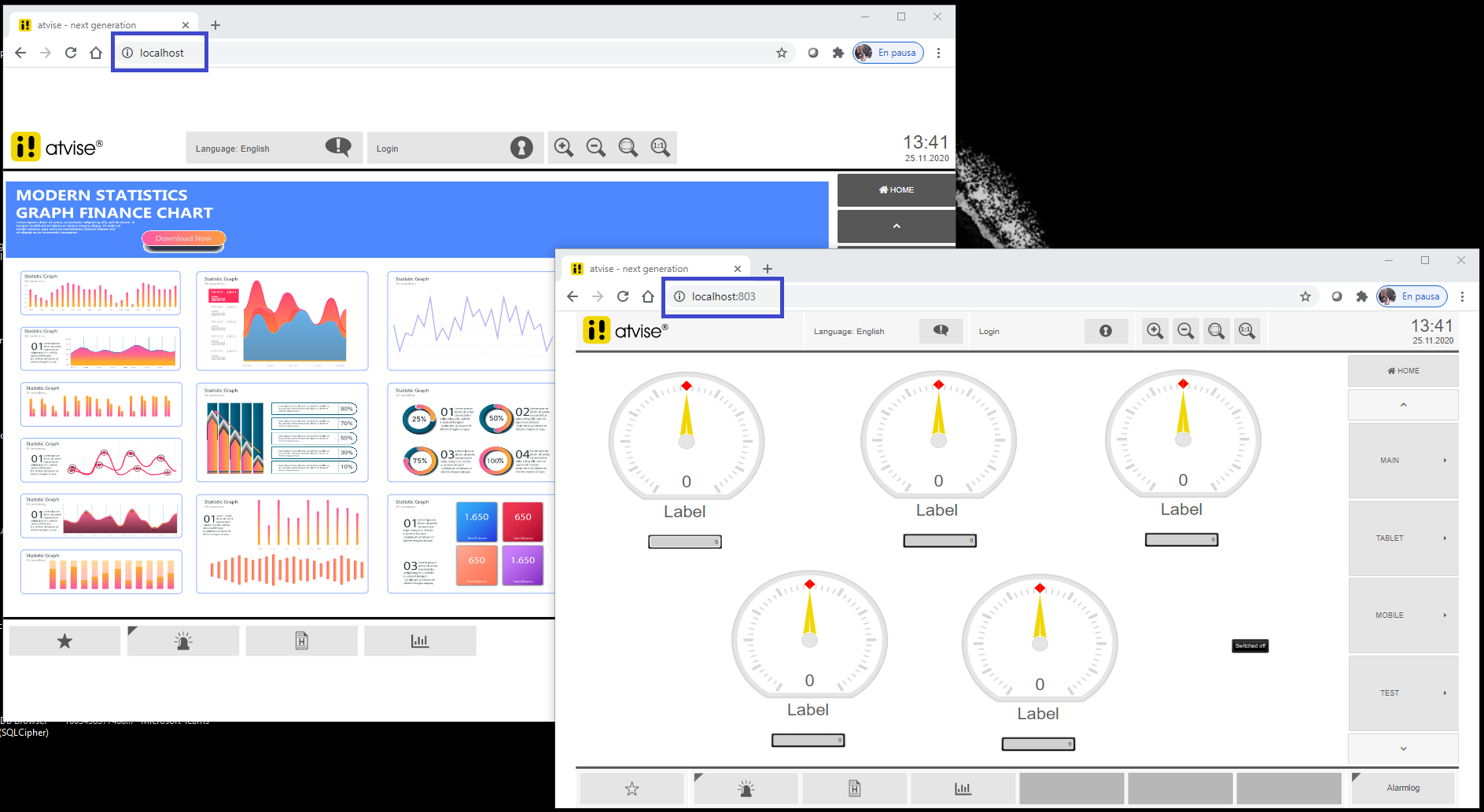

5. Test it. Run two web browser tabs, one pointing to the default project (port 80) and the other one pointing to the second project (in this case, port 803):
