atvise Advanced Dashboard Library User Manual

Created by Vester Business, Modified on Tue, 3 Jun at 5:02 PM by Vester Business

TABLE OF CONTENTS

Download and Import

Please make sure to follow these steps in order to configure a display with the basic elements.

Download Dashboard Library
- Login to files.vesterbusiness.com with you partner credentials.
- Locate the files in
  - atvise configurations
    - Dashboard_Library
      - atvise_Advanced_Dashboard_Official_Export
- Download zip file and uncompress.
Import the Dashboard Library
- Open atvise Builder
  - You can work with a fresh new project or an exiting one. (If you are working with an existing project we recommend to make a backup first).
  - Go to "Version Control"

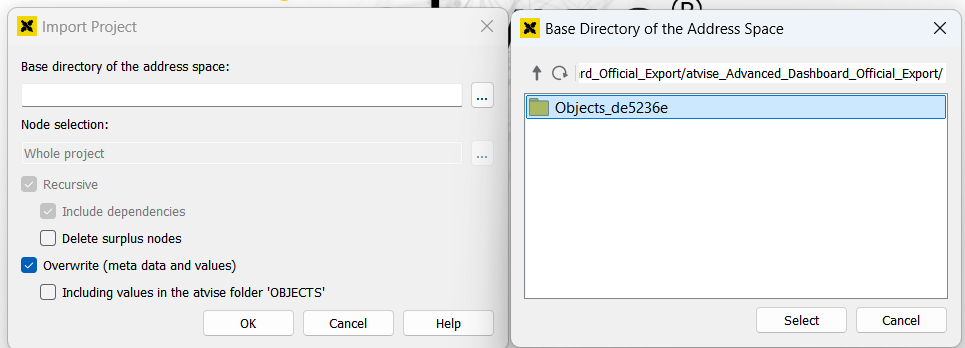

    - Import Project
      - Browse the folder where you stored the downloaded files.
      - Select the "Objects_de5236e" folder.
      - Click Select
      - Click OK
      - Wait for the import process to finish.

Create the main display

Login to atvise Builder
- Go to MyServer
  - Displays
    - Main
      - Double click to edit Main display
Elements in Library - PROJECT
- The elements imported in Library - PROJECT - Object Displays - Advanced Dashboards: are the elements required for the dashboard Library to work properly
Navigate to element in Objects Displays
- Advanced Dashboards

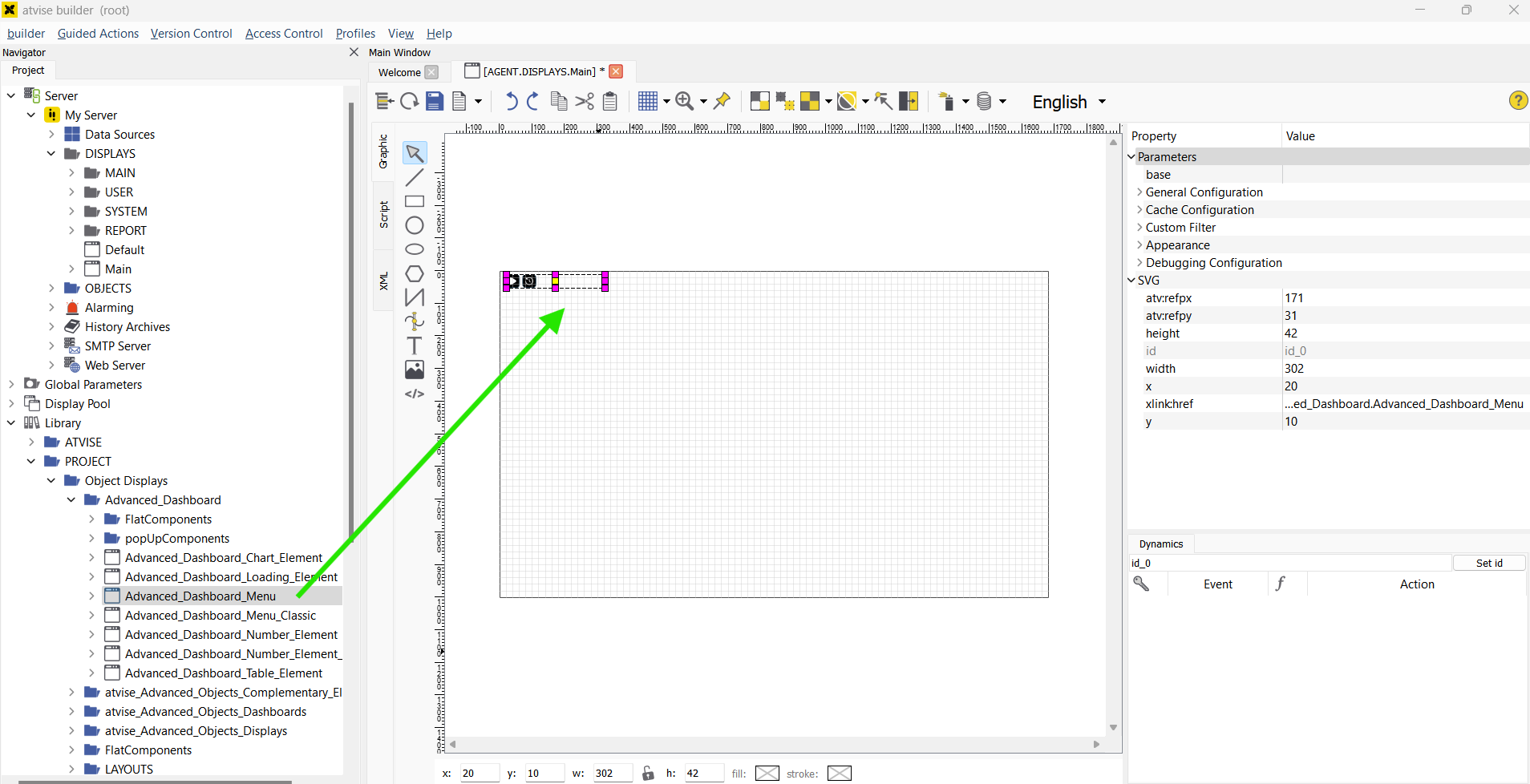

  - Advanced Dashboard Menu - DRAG and DROP this element into the Main display.

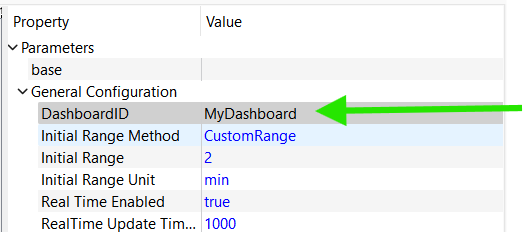

Parameters for "Dashboard Menu"
- For a detailed description of the parameters please refer to the Advanced_Dashboard_Menu parameters
- Please set a name for the "DashboardID" parameter
  - For this example "MyDashboard" will be the unique name.
  - All other parameters can be used as default.

Add Dashboard Chart Object

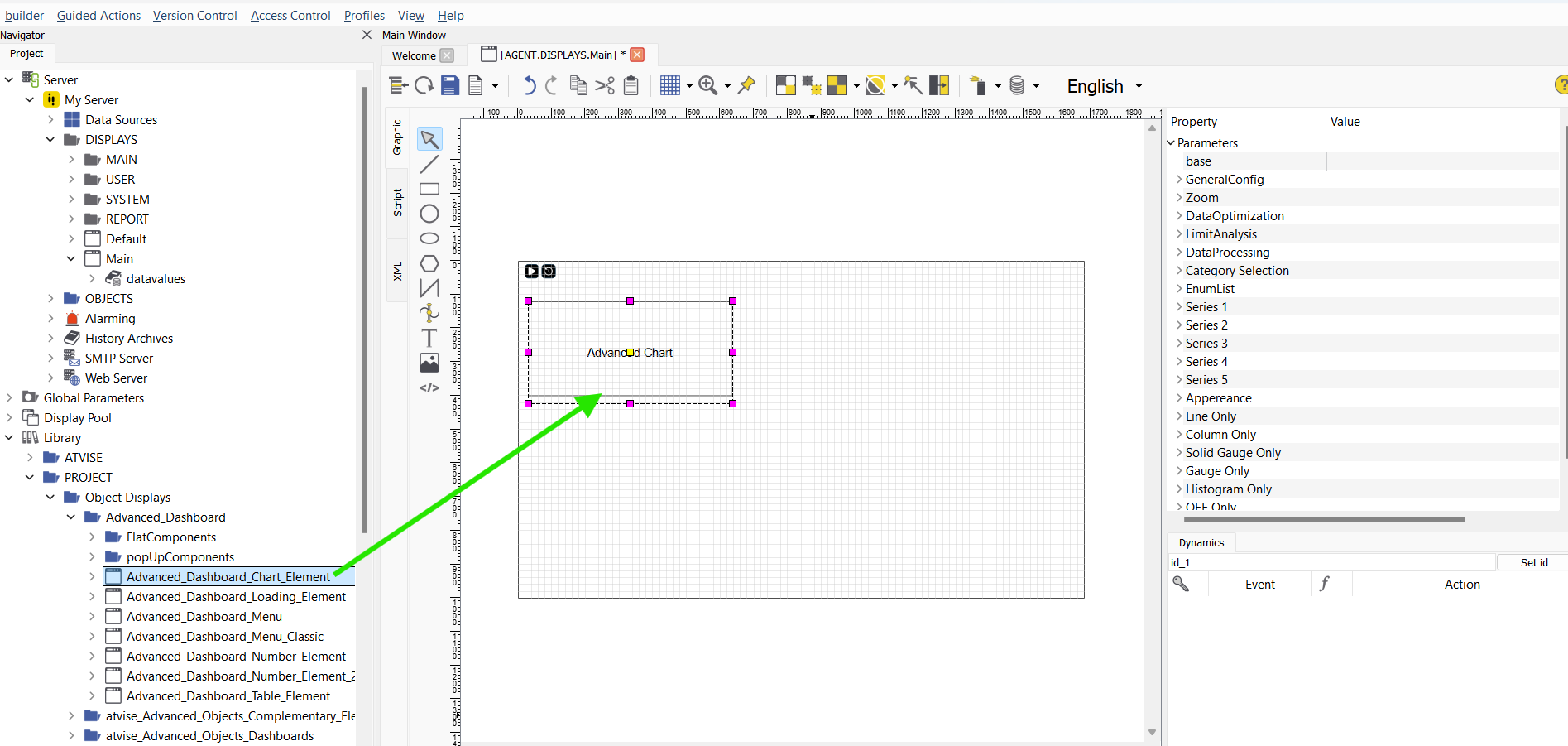

Navigate to element in Objects Displays
- Advanced Dashboards
  - Advanced Dashboard Chart Element - DRAG and DROP this element into the Main display.

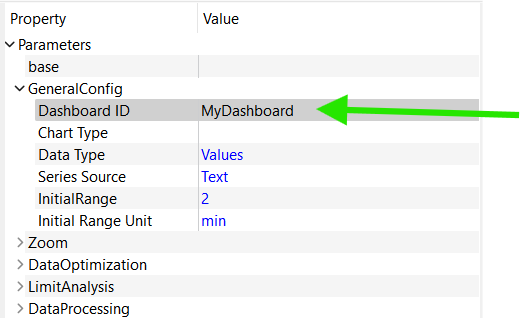

Parameters for "Dashboard Chart Element"
For a detailed description of the parameters please refer to the Advanced_Dashboard_Chart_Element parameters
Please set parameter "DashboardID" with the same name as the Dashboard Menu.
- For this example "MyDashboard"

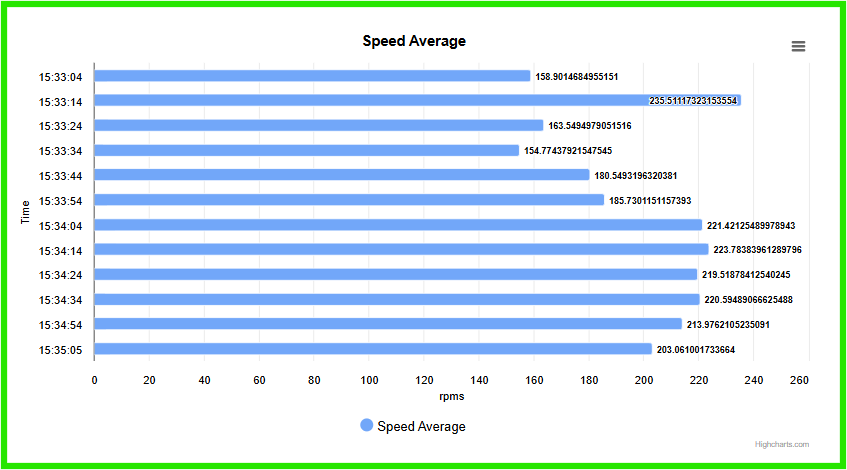

This initial setup for the main display will get the configuration needed to start creating your different types of charts.

PLEASE SEE EXAMPLES SECTION TO CONFIGURE DIFFERENT TYPE OF CHARTS

Add Dashboard Number Element

Navigate to element in Objects Displays
- Advanced Dashboards

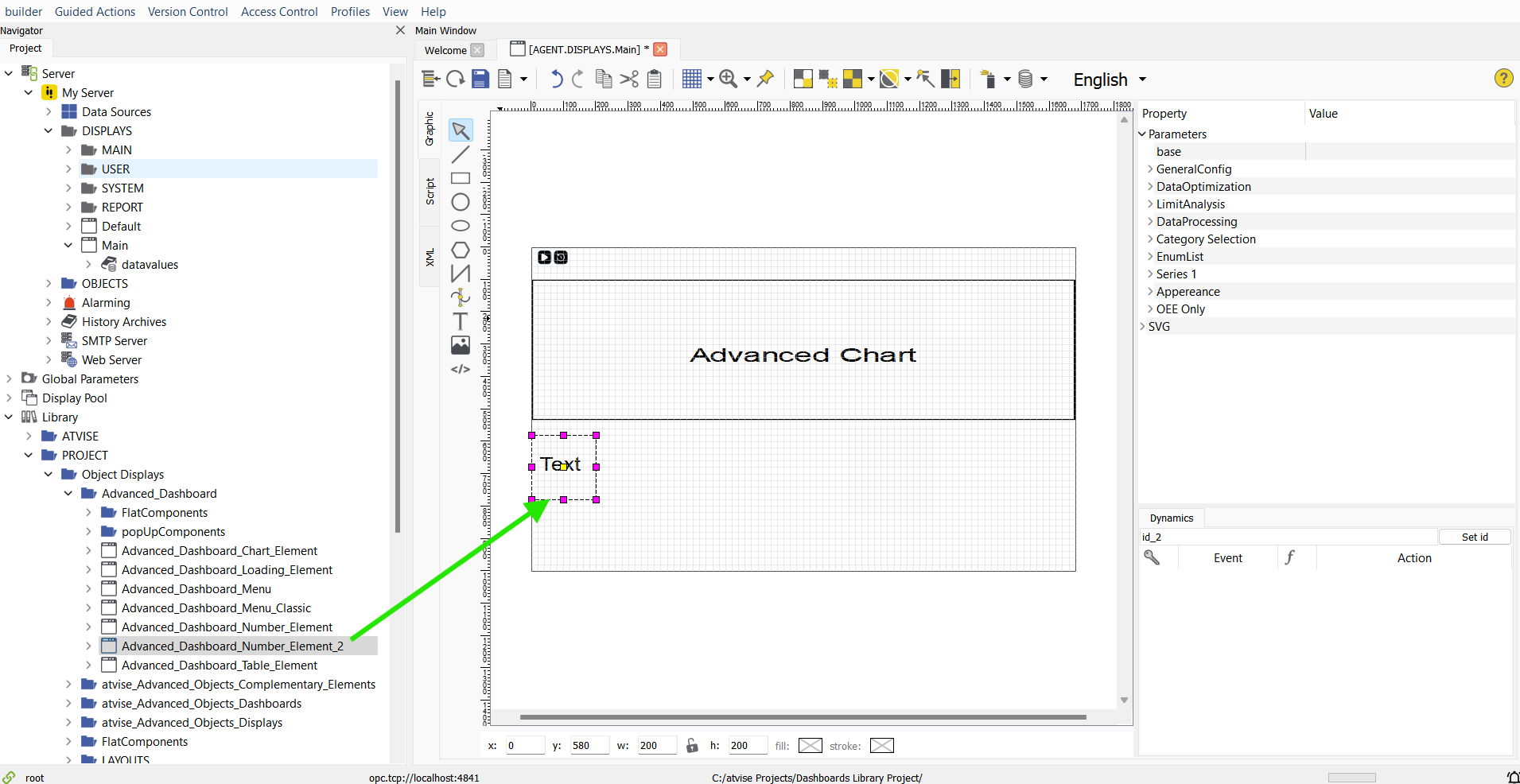

  - Advanced Dashboard Number Element 2 - DRAG and DROP this element into the Main display.

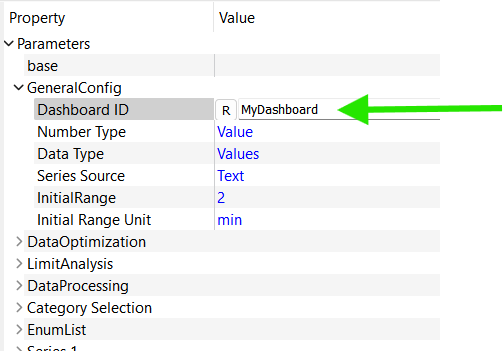

Parameter for "Dashboar Number Element"
For a detailed description of the parameters please refer to the Advanced_Dashboard_Number Element parameters
Please set parameter "DashboardID" with the same name as the Dashboard Menu.
- For this example "MyDashboard"

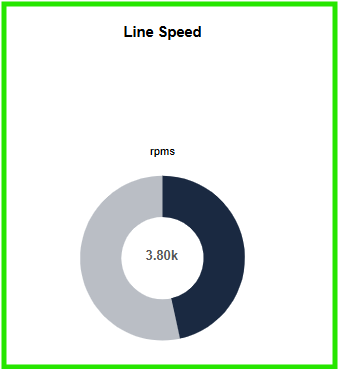

This initial setup for the main display will get the configuration needed to start creating your different types of charts.

PLEASE SEE EXAMPLES SECTION TO CONFIGURE DIFFERENT TYPE OF CHARTS

Simulated variables for examples

When importing the dashboard library, simulation nodes will be imported in the "Objects" these simulation nodes can be used to create charts.

Simulated variables

Location	Name
OBJECTS>SIMULATION>COUNTER	Line_Counter_1 Line_Counter_2 Line_Counter_3 Line_Counter_4 Line_Counter_5
OBJECTS>SIMULATION>ENERGY	Power_1 Power_2 Power_3 Power_4 Power_5
OBJECTS>SIMULATION>FREQUENCY	Frequency_1 Frequency_2
OBJECTS>SIMULATION>HUMIDITY	Humidity_1 Humidity_2
OBJECTS>SIMULATION>SPEED	Converyor_Speed_1 Distance_1 Production_Speed_1
OBJECTS>SIMULATION>TEMPERATURE	Temperature_1 Temperature_2
OBJECTS>SIMULATION>WEIGHT	Weight_1 Weight_2

Parameters tables

Advanced_Dashboard_Menu parameters

Property	Value
base	not for use in the element, leave empty
General Configuration	Section
Dashboard ID	you need to type a unique name for your dashboard. I.E. "MyDashboard"
Initial Range Method	This dropdown will let you select the time span for the dashboard
Initial Range	If Custom Range was selected this will be the time range for the dashboard time span
Initial Range Unit	If Custom Range was selected this will be the time span units
Real Time Enabled	If true the dashboard will be enable for realt time view
Real Time Update Time (ms)	If Real Time enables this will be the refresh period of the real time dashboard
Cache Configuration	Section
Cache Enabled	If enable the dashboard will store data in a local memory for faster realtime access If note enabled all historical data will be requested to the data base
Custom Filter	Section
Custom filter active	To be implemented
Node Reference	To be implemented
Appearance	Section
Color active	The color of the menu buttons when active
Color inactive	The color of the menu buttons when inactive
Color selection elements	Color for the date range selection menu items
Font Size Menu	Menu font size
Font Size Date Pickers	Date pickers font size
Font Color	Menu font color
Stroke Color	Menu border line color
Loading Background Color	Loading menu popup color
PopUp Display	The display loaded for "loading" process
Font Color PopUp	Font color for the popup menu
Debugging Configuration	Section
Debugging Enabled	If true the dashboard will log in debuggin mode in the log console
Debugging Section	All-Code Client-Only Server-Only

Advanced_Dashboard_Chart_Element parameters

Property	Value
General Config	Section
DashboardID	Type the same DashboardID used for the Dashboard Menu
Chart Type	A dropbox that will let you select: Line, Spline, Area, Column, Bar, Pie, Pyramid, Solid Gauge, Gauge and Histogram type of graphic
Data Type	Values: You will be used the values for the chart Aggregates: You will be using the stored aggregates for the chart. Alarms: you will be using the stored alarms for the chart.
Series Source	Text: use this option to select each of the series on the Series configuration EnumList: use this option to create a List in atvise Builder for the Series, instead of the series configuration.
Initial Range	Initial Range for the time span of the chart
Initial Range Unit	Units for the Initial Range
Zoom	Section
Zoom	If enabled it will enable the zoom option in the chart.
Data Optimization	Section
Data Reduction Enabled	If true the dashboard will reduce the number of sample to the Max Size
Data Reduction Max Size	The maximum number of data points the data reduction will use

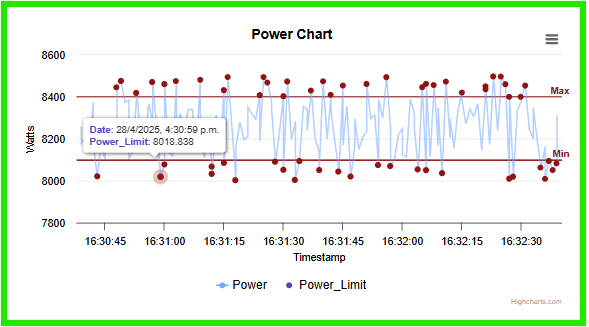

Limit Analysis	Section
Data Limit Enabled	If enabled will activate the limit configuration and analysis for the chart.
Data Max Limit	This value will be the Maximum Limit Setpoint
Color Limit Point Max	This color will be used to color the data point in the limit line
Color Limit Line Max	This color will be used to color the max limit line
Type Limit Line Max	Select the type of line to use for Max Limit: Dash, DashDot, Dot, LongDash, LongDashDot, LongDashDotDot, ShortDash, ShortDashDot, ShortDashDotDot, ShortDot, Solid
Text Limit Line Max	Type the Text Label to use for the Line Max Text
Data Min Limit	This value will be the Minimum Limit Setpoint
Color Limit Point Min	This color will be used to color the data point in the limit line
Color Limit Line Min	This color will be used to color the min limit line
Type Limit Line Min	Select the type of line to use for Min Limit: Dash, DashDot, Dot, LongDash, LongDashDot, LongDashDotDot, ShortDash, ShortDashDot, ShortDashDotDot, ShortDot, Solid
Text Limit Line Min	Type the Text Label to use for the Line Min Text
Data Processing	Section
Data Processing Enabled	If true this option will enable all the data processing calculations available for the object
Data Processing Type	Refer to Data Processing Type table for details Data Processing Type Table
Processing Time Input Unit	The time unit used for the interval calculations in data processing
Category Selection	Section
Category Type	Note: Categories are used by the chart elements to separate the data into intervals or categories AllData-DateTime: no interval separation, all the data in the time span will be into 1 single interval. Interval-Custom Text: if selected you will define a Custom Category to separate the data in categories. Interval-CustomInterval: If selected you will define your own interval lenght and interval time units to separate your data into intervals. Interval-Dynamic: The interval will be set automatically Interval-Histogram: This interval is only used for Histogram charts and is required to set the histogram categories. Single-Simple: This interval will set only 1 interval and only 1 value in the interval.
Category Round Up	If true the dashbar will round up the category initial time
Custom Interval Length	Used if you select Interval-CustomInterval this will be the interval lenght, according with the interval unit
Custom Interval Unit	Used in combination with Custom Interval Unit to set the correct time units
Category Time Offset	This is an offset in the interval units to start the category with that x ammount of offset.
EnumList	Section
Global Enum List	Used only if you select "Series Source" as "EnumList" this will be the list with all the series definition
Series 1 .... X	Section
Input 1	The variable used fthis series
Label 1	The name of thisseries
Color 1	The color usef for this series
Appereance	Section
Title	The Title of the chart
Title Align	Select the horizontal aligment for the title
Subtitle	The subtitle of the chart
YName	Name for the Y Axis
XName	Name for the X Axis
Color Series Type	Color Pallete: if select all series color will be taken from "Series Pallete Color" Color Custom: if selected the series will take the custom color in each series
Series Palette Color	The series color pallete used for the series colors.
Background Transparent Enabled	If true the background of this chart will be transparent
Background Color	The color for the background of the chart
Grid Color	The color for the grid of the chart
Color Title	The font color for the title
Color Subtitle	The font color for the subtitle
Color legend	The font color for the series legend.
Color xAxis	The color for the xAxis
Color yAxis	The color for the yAxis
Color dataLabels	The color for the data labels
TitleFontSize	The font size for the title
xAxis FontSize	The font size for the xAxis
yAxis FontSize	The font size for the yAxis
Legend FontSize	The font size for the series legends
Data Labels FontSize	The font size for the data labels
Data Label Type	Value-Simple Time-Dynamic Time-Custom
Data Label CustomTime Format	The format of time display for the data Label
Datalabel Number Decimals	The number of decimals to display for data label
Datalabel Unit	The unit for the data label
Line Only	Section
Line Width	The width of the line for line or spline charts
Line Dash Style	The style of the line or spline charts
Column Only	Section
Label Position	The horizontal position of the label for column charts
Stack enabled	If true all the column series will be stacked.
Solid Gauge Only	Section
Max Value	The maximun value for the solid gauge maximum limit
Unit	The units for the gauge solid chart
OuterRadius	The outer radius for the solid gauge circle
InnerRadius	The inner radius for the solid gauge circlee

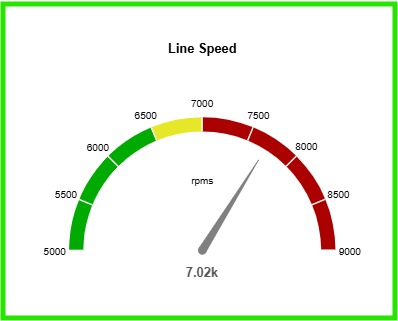

Gauge Only	Section
Gauge Unit	The units for the gauge chart
Gauge Min	The gauge chart Minimum value
Gauge Max	The gauge chart Maximum value
Gauge Pane Color	The gauge faceplate color
Gauge Band 1 Min	The minimun value of the band 1 most be equal to the Gauge min value
Gauge Band 1 Max	The maximum value of the band 1 most be equal to the Gauge Band 2 Min value
Gauge Band 1 Color	The color for the Band 1
Gauge Band 2 Min	The minimun value of the band 2 most be equal to the Gauge Band 1 Max value
Gauge Band 2 Max	The maximum value of the band 2 most be equal to the Gauge Band 3 Min value
Gauge Band 2 Color	The color for the Band2
Gauge Band 3 Min	The minimun value of the band 3 most be equal to the Gauge Band 2 Max value
Gauge Band 3 Max	The maximum value of the band 3 most be equal to the Gauge Max
Gauge Band 3 Color	The color for the Band 3
Gauge Outer Radius	The outer circle radius for the gauge
Gauge Inner Radius	The inned circle radius for the gauge

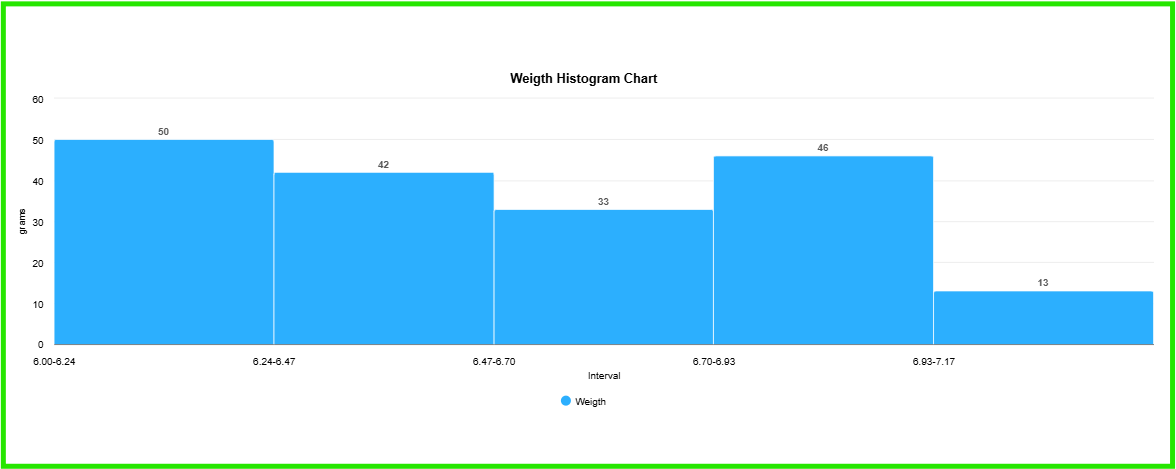

Histogram Only	Section
Number of Bins	The number of classes the histogram chart will use to build the chart. Can be left empty and the chart will automatically create the bins.
OEE Only	Section
OEEID	Used for OEE elements only, all OEE chart elements must have this ID.
Availability Counter Node	The Node from which availability value will be read.
Productivity Counter Node	The Node from which the productivity value will be read.
Quality Counter Node	The Node from which the quality value will the read.
Production Speed Method	Fixed Speed: the machine has a fixed production speed Variable Speed: the machie speed will be variable in time. Expected Units counter
Production fixed speed	If Fixed Speed is selected this value will be the set fixed speed.
Production variable speed node	If Variable Speed was selected this will be the Node from which the speed will be read.
Production Expected Units Counter Node	If Expected Units Counter was selected this will be the Production Expected Unit Counter Node.
Production Speed Unit	u/s: units per second u/m: units per minute u/h: units per hour u/d: units per day u/m: units per month
Planned Downtime Method	This affects the productivity and availability calculations None: no programmed downtime PlannedEnum: Used Global List PlannedCounter: If you have a node that counts the downtime it can be selected
Planned Downtime Enum	If Planned Enum method is selected this is the enum list configured for the Planned Downtime
Planned Downtime Counter Node	If Planned Counter method is selected thiis will be the Planned downtime node.
Quality Input Method	Input-BadUnits Input-GoodUnits

Data Processing Type Table

Processing Name	Explanation
Simple - None	This calculation will use the time range in the chart and will return all the values in the time range.
Single Point Last Value	This calculation will use the time range in the chart and will return only the last value in the time range.
Single Point First Value	This calculation will use the time range in the chart and will return only the first value in the time range.
Single Point Max	This calculation will use the time range in the chart and will return only the maximum value in the time range.
Single Point Min	This calculation will use the time range in the chart and will return only the minimum value in the time range.

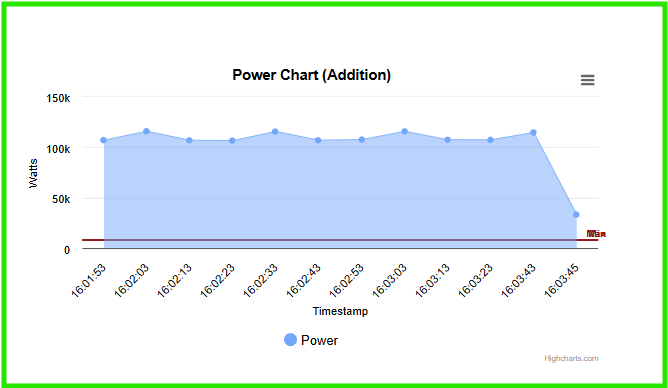

Interval - Addition	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the addition of all the values in the interval, during the time range. Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be the addition of the values for 10 minutes interval, during 60 minutes range.

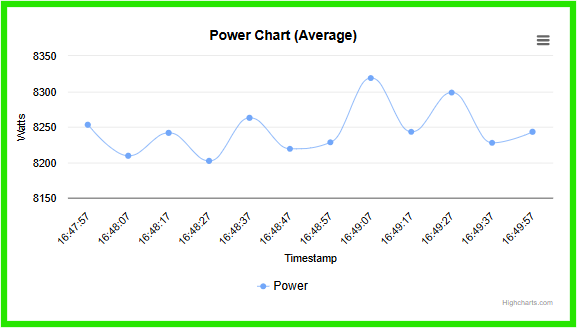

Interval - Average	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the average of all the values in the interval, during the time range. Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be the average of the values for 10 minutes interval, during 60 minutes range.
Interval - CountChanges	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the number of changes in the value for the interval, during the time range. Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be number of times the value changed in a 10 minutes interval, during 60 minutes range.
Interval - CountTimeOff	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the ammount of time the value was "FALSE" or "0" for a Boolean variable, in the intervals during the time range Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be the ammount of time the variable was "False" for 10 minutes interval, during 60 minutes range.
Interval - CountTimeOn	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the ammount of time the value was "TRUE" or "1" for a Boolean variable, in the intervals during the time range Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be the ammount of time the variable was "True" for 10 minutes interval, during 60 minutes range.
Interval - Difference	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the difference between the last value and the first value, in the intervals during the time range Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will be the difference between the last value and the last value for 10 minutes interval, during 60 minutes range.
Interval - Histogram
Interval - Integration	This calculation requires an Interval definition configured in the Category Type. This calculation will use the interval configured within the time range. This calculation will return the integration value (area below the curve) in the intervals during the time range Example: - TimeRange: 60 minutes. - Interval: 10 minutes. - Result: 6 values, each value will the area below the curve (integration) 10 minutes interval, during 60 minutes range.
FullRange - Addition	This calculation works with AllData-DateTime This calculation will return 1 value This calcluation will return the addition of all the values in the time range.
FullRange - Average	This calculation works with AllData-DateTime This calculation will return 1 value This calcluation will return the average of all the values in the time range.
FullRange - Difference	This calculation works with AllData-DateTime This calculation will return 1 value This calcluation will return the difference of all the values in the time range.
FullRange - Integration	This calculation works with AllData-DateTime This calculation will return 1 value This calcluation will return the integration of all the values in the time range.
FullRange - OEE	OEE calculation for the entire time span.
FullRange - Availability	OEE availability calculation for the entire time span.
FullRange - Productivity	OEE productivity calculation for the entire time span.
FullRange- OEEQuality	OEE quiacalculation for the entire time span.

Advanced_Dashboard_Number Element parameters

Property	Value
base	Don't used leave empty
General Config	Section
Dashboard ID	The unique name for this dashboard
Number Type	Value: select for a numeric value Time: selec to display data in time format.
Data Type	Values: You will be used the values for the chart Aggregates: You will be using the stored aggregates for the chart. Alarms: you will be using the stored alarms for the chart.s
Series Source	Text: use this option to select each of the series on the Series configuration EnumList: use this option to create a List in atvise Builder for the Series, instead of the series configuration.
Initial Range	The time span used for the initial value
Initial Range Unit	The units for the time span
Data Optimization	Section
Data Reduction Enabled	If true the dashboard will reduce the number of sample to the Max Size
Data Reduction Max Size	The maximum number of data points the data reduction will use
Limit Analysis	Section
Data Limit Enabled	If enabled will activate the limit configuration and analysis for the chart.
Data Max Limit	This value will be the Maximum Limit Setpoint
Color Limit Point Max	This color will be used to color the data point in the limit line
Text Limit Point Max	Type the Text Label to use for the Line Max Text
Data Min Limit	This value will be the Minimum Limit Setpoint
Color Limit Point Min	This color will be used to color the data point in the limit line
Text Limit Line Min	Type the Text Label to use for the Line Min Text
Data Processing	Section
Data Processing Enabled	If true this option will enable all the data processing calculations available for the object
Data Processing Type	Refer to Data Processing Type table for details Data Processing Type Table
Category Selection	Section
Category Type	Single-Simple: This interval will set only 1 interval and only 1 value in the interval.
EnumList	Section
Global Enum List	Used only if you select "Series Source" as "EnumList" this will be the list with all the series definition
Series 1	Section
Input 1	The variable used for this series
Label 1	The name of this series
Color 1	The color usef for this series
Appereance	Section
Title	The Title of the chart
Title Align	Select the horizontal aligment for the title
Title X Margin	The horizontal margin for the title
Title Y Margin	The vertical margin for the title
Subtitle	The subtitle of the chart
Subtitle Align	Select the horizontal aligment for the sub title
Subtitle X Margin	The horizontal margin for the subtitle
Subtitle Y Margin	The vertical margin for the subtitle
Data Align	The horizontal aligment for the data value
Data X Margin	The horizontal margin for the data value
Data Y Margin	The vertical margin for the data value
Color Series Type	Color Pallete: Color Custom:
Series Palette Color
Background Transparent Enabled
Background Color	The color for the background of the chart
Border Enabled	If enabled the chart will have a border line
Color Border	This will be the color for the border line
Color Title	The font color for the title
Color Subtitle	The font color for the subtitle
Color Data	The font color for the data value
Color Unit	The font color for the units
Title Font	Define the font type for the title
Title Font Size	Define the font size for the title
Title Font Weight	Define the font weight for the title
Titly Font Style	Define the font style for the title
SubTitle Text Decoration	Define the font decoration for the title.
Data Font	Define the font for the data value
Unit Font	Define the font for the units
Data Font Size	Define the font size for the data value
Unit Font Size	Define the font size for the unit
Data Type	Value-Simple Time-Dynamic Time-Custom
Data Custom Time Format	The format for the data timestamp
Data Number Decimals	The decimals for the data value
Data Unit	The data units
OEE Only	Section
Production Speed (U/H)	The production speed in units per hour
Complete Range Analysis

Chart Type - Processing - Categories Compatiblity Table

Chart Type	Data Processing Type	Category Type
Line	Simple - None Interval - Addition Interval - Average Interval - Difference Interval - CountChanges Interval - CountTimeOff Interval - CountTimeOn Interval - Integration Full Range	All Data-DateTime Interval-CustomInterval
Spline	Simple - None Interval - Addition Interval - Average Interval - Difference Interval - CountChanges Interval - CountTimeOff Interval - CountTimeOn Interval - Integration Full Range	All Data-DateTime Interval-CustomInterval
Area	Simple - None Interval - Addition Interval - Average Interval - Difference Interval - CountChanges Interval - CountTimeOff Interval - CountTimeOn Interval - Integration Full Range	All Data-DateTime Interval-CustomInterval
Bar	Interval - Addition Interval - Average Interval - Difference Interval - CountChanges Interval - CountTimeOff Interval - CountTimeOn Interval - Integration	All Data-DateTime Interval-CustomInterval
Pie Chart	Simple - None Single Point Full Range - Addition Full Range - Average Full Range - Difference	Single-Simple
Pyramid	Simple - None Single Point Full Range - Addition Full Range - Average Full Range - Difference	Single-Simple
Solid Gauge	Simple - None Single Point Full Range - Addition Full Range - Average Full Range - Difference Full Rage - OEE	Single-Simple
Histogram	Interval Histogram	Interval Histggran

Chart examples - how to create

Line Chart

This example is a line chart with no data processing, it will plot all the values stores in the time span.
No categories.
Limits are enabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Line
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	True
Data Max Limit	8400
Data Min Limit	8100
Data Processing	True
Data Processing Type	Simple - None
Category Type	AllData - DateTime
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Energy.Power_2
Series 1 - Label 1	Power
Series 1 - Color 1	#00aa7f
Title	Power Chart
YName	Watts
XName	Timestamp

Spline Chart

This example is a spline chart with average data processing
It will plot the average value for a 2 minute span, with intervals of 10 seconds.
Interval is custom with 10 seconds intervals.
Limits are enabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Spline
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	True
Data Max Limit	8400
Data Min Limit	8100
Data Processing	True
Data Processing Type	Interval - Average
Category Type	Interval - CustomInterval
Custom Category
Custom Interval Lenght	10
Custom Interval Unit	s
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Energy.Power_2
Series 1 - Label 1	Power
Series 1 - Color 1	#00aa7f
Title	Power Chart (Average)
YName	Watts
XName	Timestamp

Area Chart

This example is a area chart with addition data processing
It will plot the average value for a 2 minute span, with intervals of 10 seconds.
Interval is custom with 10 seconds intervals.
Limits are enabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Area
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	True
Data Max Limit	8400
Data Min Limit	8100
Data Processing	True
Data Processing Type	Interval - Addition
Category Type	Interval - CustomInterval
Custom Category
Custom Interval Lenght	10
Custom Interval Unit	s
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Energy.Power_2
Series 1 - Label 1	Power
Series 1 - Color 1	#00aa7f
Title	Power Chart (Addition)
YName	Watts
XName	Timestamp

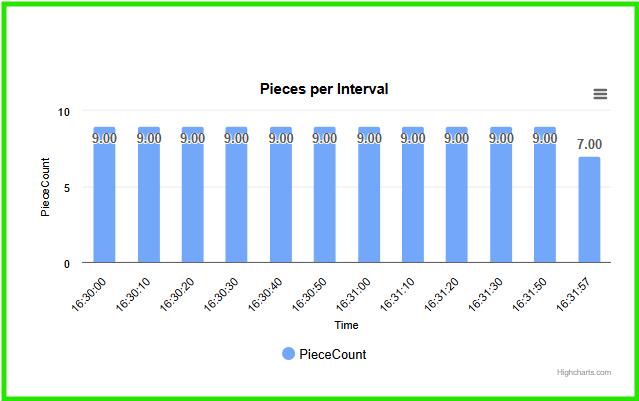

Column Chart

This example is a column chart that will show the number of pieces in the interval.
It will show a column for the 2 last minutes, with 10 seconds interval, each interval will be the number of pieces
Interval is custom with 10 seconds intervals.
Limits are disabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Column
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	False
Data Max Limit
Data Min Limit
Data Processing	True
Data Processing Type	Interval - Difference
Category Type	Interval - CustomInterval
Custom Category
Custom Interval Lenght	10
Custom Interval Unit	s
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Counter.Line_Counter_1
Series 1 - Label 1	#Pieces
Series 1 - Color 1	#00aa7f
Title	Number of Pieces per Interval
YName	Piece Count
XName	Interval

Bar Chart

This example is a bar chart that will show the average speed in the interval.
It will show a column for the 2 last minutes, with 10 seconds interval, each interval will be the speed average
Interval is custom with 10 seconds intervals.
Limits are disabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Bar
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	False
Data Max Limit
Data Min Limit
Data Processing	True
Data Processing Type	Interval - Average
Category Type	Interval - CustomInterval
Custom Category
Custom Interval Lenght	10
Custom Interval Unit	s
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Speed.Conveyor_Speed_1
Series 1 - Label 1	#Speed Average
Series 1 - Color 1	#00aa7f
Title	Speed Average
YName	rpms
XName	Interval

Pie Chart

This example is a pie distribution of production between 3 lines
It will display all the pieces produce per line
No Categores
Limits are disabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Pie
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	False
Data Max Limit
Data Min Limit
Data Processing	True
Data Processing Type	Full Range -Addition
Category Type	AllData-DateTime
Custom Category
Custom Interval Lenght
Custom Interval Unit
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Counter.Line_Counter_1
Series 1 - Label 1	Line 1
Series 1 - Color 1	#00aa7f
Title	Production per Lines
YName	rpms
XName	Interval

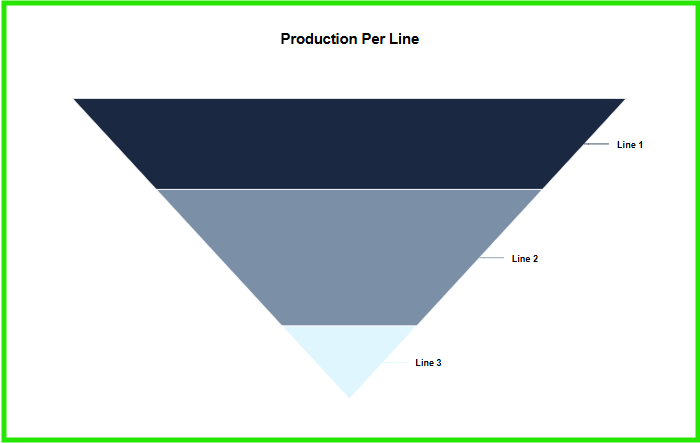

Pyramid Chart

This example is a pie distribution of production between 3 lines
It will display all the pieces produce per line
No Categores
Limits are disabled

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Pyramid
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	False
Data Max Limit
Data Min Limit
Data Processing	True
Data Processing Type	Full Range -Addition
Category Type	AllData-DateTime
Custom Category
Custom Interval Lenght
Custom Interval Unit
Custom Interval Unit
Series 1 - Input 1 ..... Input3	AGENT.OBJECTS.Simulation.Counter.Line_Counter_1 / Counter_2 & Counter 3
Series 1 - Label 1 ...... Input 3	Line 1, Line 2 & Line 3
Series 1 - Color 1 ..... IInput3	#00aa7f
Title	Production per Lines
YName	rpms
XName	Interval

Solid Gauge

This example will display the Line Speed as a single value in a solid Gauge

This is the resulting example

In this example the Dashboard Chart Element will be configured as follows

Property	Value
DashboardID	MyDashboard
Chart Type	Solidgauge
Data Type	Values
Series Source	Text
Initial Range	2
Initial Range Unit	min
Limit Analysis	False
Data Max Limit
Data Min Limit
Data Processing	True
Data Processing Type	SinglePoint-LastValue
Category Type	Single-Simple
Custom Category
Custom Interval Lenght
Custom Interval Unit
Custom Interval Unit
Series 1 - Input 1	AGENT.OBJECTS.Simulation.Speed.Production_Speed_1
Series 1 - Label 1	Line Speed
Series 1 - Color 1	#00aa7f
Title	Lines Speed
YName	rpms
XName	Interval
Solid Gauge Only
Max Value	8000
OuterRadius	40
InnerRadius

atvise Advanced Dashboard Library User Manual

Download and Import

Create the main display

Add Dashboard Control Menu

Add Dashboard Chart Object

Add Dashboard Number Element

Simulated variables for examples

Parameters tables

Advanced_Dashboard_Menu parameters

Advanced_Dashboard_Chart_Element parameters

Data Processing Type Table

Advanced_Dashboard_Number Element parameters

Chart Type - Processing - Categories Compatiblity Table

Chart examples - how to create

Line Chart

Spline Chart

Column Chart

Bar Chart

Pyramid Chart

Solid Gauge

Histogram Chart

Gauge Chart

Number Element
