How to connect to UAServer using user and password

For this exercise, we are gonna use Matrikon Wrapper to simulate our UAServer:

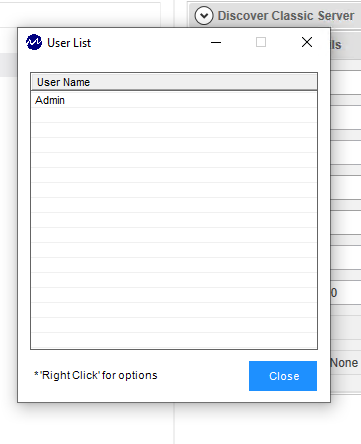

1. First, we need to check what user is allowed to connect our UAServer:

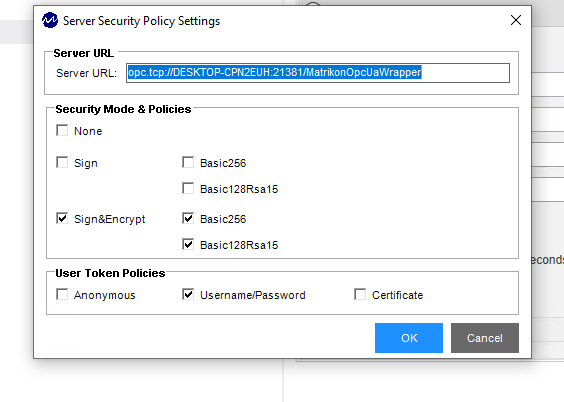

2. After that, we check the Policy Setting of the UAServer:

3.     Now knowing that, we will use our OPCUA Client to query our UAServer:

       Open you OPCUA Client and try to connect it to the UAServer:

Matrikon OPCUA Explorer:

1. Click in add new Server.

2. Then, in the right side, click on discovery, now you must type the IP address and port of the UAServer.

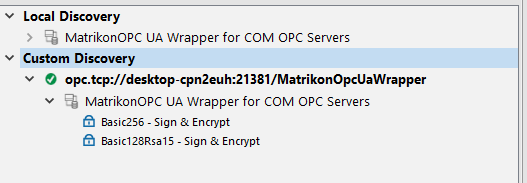

3. After that, you click in the button search, and it gonna shows you a new menu with the different security mode:

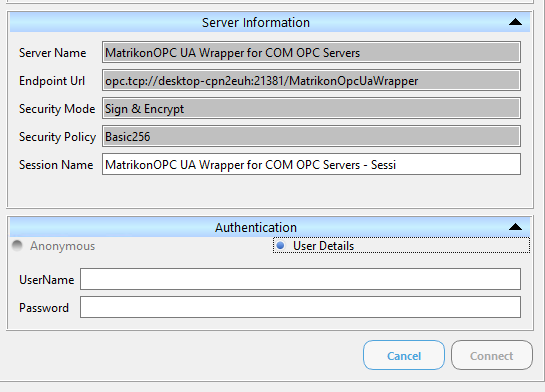

4. You use the mode allowed in the UAServer, and try to sing in.

If you can connect to the UAServer, you would check in the UAServer if your Certificate was approved it.

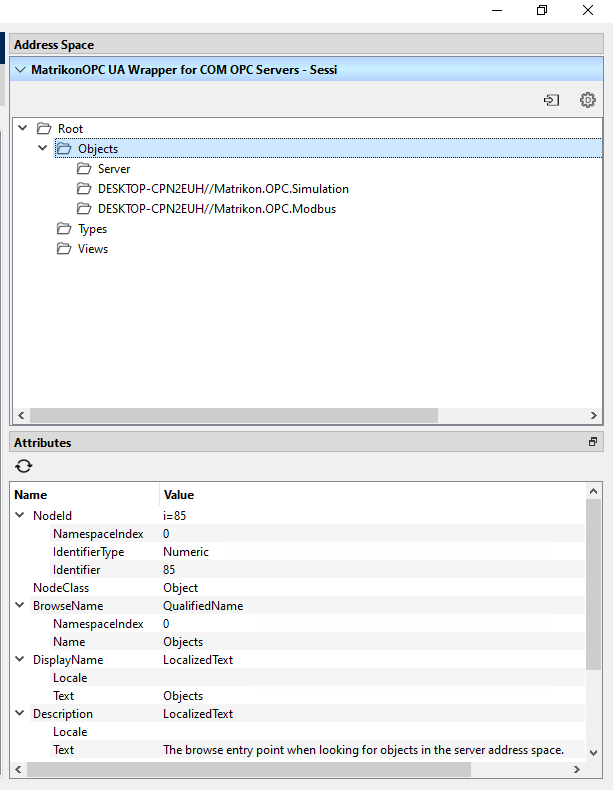

Now you can see the different memory address paths in the UAServer.
